简介

项目地址：https://github.com/jelasin/LibCoroutine

使用C开发的一个协程库，支持协程同步，动态添加，通过调度器进行协程调度。

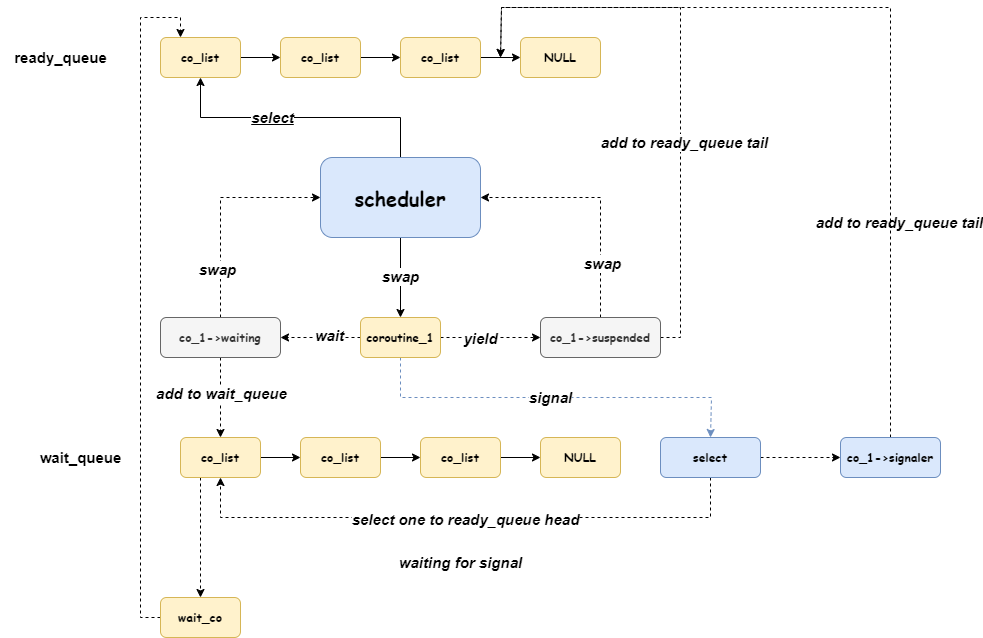

整体架构

等待队列这里只画了一个，实际上每个条件变量都有一个自己的等待队列。

libcoroutine

数据结构

co_types.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
#ifndef __CO_TYPES_H__
#define __CO_TYPES_H__

#include <ucontext.h>

typedef enum {
    COROUTINE_READY,
    COROUTINE_RUNNING,
    COROUTINE_SUSPENDED,
    COROUTINE_SIGNALER,
    COROUTINE_WAITING,
    COROUTINE_FINISHED
} CoroutineState;

typedef enum {
    COROUTINE_OK,
    COROUTINE_NO,
} ConditionState;

typedef struct coroutine_t {
    ucontext_t context;
    char *stack;
    size_t stack_size;
    CoroutineState state;
    void (*func)(void *);
    void *arg;
    struct coroutine_t *next;
} coroutine_t;

typedef struct {
    ucontext_t main_context; // the context of the main thread
    coroutine_t *current;   // the current coroutine
    coroutine_t *ready_queue; // the ready queue of coroutines
} scheduler_t;

typedef struct coroutine_cond_t {
    coroutine_t *wait_queue;
    ConditionState state;
} coroutine_cond_t;

#endif

调度器实现

co_scehduler.h

1
2
3
4
5
6
7
8
9
10
11
12
#ifndef __CO_SCHEDULER_H__
#define __CO_SCHEDULER_H__

#include "co_types.h"

extern scheduler_t *coroutine_scheduler_create();

extern void coroutine_scheduler_destroy(scheduler_t *sched);

extern void coroutine_scheduler_run(scheduler_t *sched);

#endif /* __CO_SCHEDULER_H__ */

coroutine_scheduler_create

1
2
3
4
5
6
7
8
9
10
11
12
// 调度器初始化
scheduler_t *coroutine_scheduler_create()
{
    scheduler_t *sched = (scheduler_t *)malloc(sizeof(scheduler_t));
    if (NULL == sched)
    {
        return NULL;
    }
    sched->current = NULL;
    sched->ready_queue = NULL;
    return sched;
}

coroutine_scheduler_destroy

1
2
3
4
5
6
7
8
9
10
// 释放资源
void coroutine_scheduler_destroy(scheduler_t *sched)
{
    if (NULL == sched)
    {
        return;
    }
    free(sched);
    sched = NULL;
}

coroutine_scheduler_run

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
// 启动调度器
void coroutine_scheduler_run(scheduler_t *sched)
{
    if (getcontext(&sched->main_context) == -1)
    {
        return;
    }

    while (sched->ready_queue != NULL)
    {
        // 从等待队列中找到一个就绪态协程
        coroutine_t *co = sched->ready_queue;
        if (COROUTINE_READY == co->state)
        {
            // 如果是就绪态，将其置为RUNNING，并从就绪队列中移除，添加到current.
            sched->ready_queue = co->next;
            co->state = COROUTINE_RUNNING;
            sched->current = co;
        }
        else
        {
            // 如果当前协程不是就绪状态，跳过它
            static int count = 0; // 防止死循环
            if (++count > 100)
            {
                return;
            }
            coroutine_t *tail = sched->ready_queue; // 找到队列尾部
            while (NULL != tail->next)
            {
                tail = tail->next; // 遍历到队列的最后一个协程
            }
            tail->next = co; // 将当前协程重新加入到队列尾部
            co->next = NULL; // 确保当前协程的next指针为NULL
            sched->ready_queue = sched->ready_queue->next; // 移出队头
            continue;
        }

        // 保存当前调度器上下文，切换至协程
        swapcontext(&sched->main_context, &co->context);

        // 协程执行完毕后的清理
        if (COROUTINE_FINISHED == co->state)
        {
            free(co->stack);
            co->stack = NULL;
            free(co);
            co = NULL;
        }
        else if (COROUTINE_SUSPENDED == co->state || COROUTINE_SIGNALER == co->state)
        {
            // 这里吧他们挂到就绪队列尾部，
            // 一般来说，当我们再次带用到 COROUTINE_SIGNALER 协程时，已经有wait的协程了。
            // 如果没有在wait的协程，我们在co_signal时做了处理。
            if (sched->ready_queue == NULL)
            {
                sched->ready_queue = co;
            }
            else
            {
                coroutine_t *tail = sched->ready_queue;
                while (NULL != tail->next)
                {
                    tail = tail->next;
                }
                tail->next = co;
                co->state = COROUTINE_READY; // 恢复为就绪状态
            }
            co->next = NULL;
        }
    }
}

协程控制实现

co_control.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
#ifndef __CO_CONTROL_H__
#define __CO_CONTROL_H__

#include "co_types.h"

extern coroutine_t *coroutine_create(scheduler_t *sched, void (*func)(void *), void *arg, size_t stack_size);

extern void coroutine_yield(scheduler_t *sched);

extern void coroutine_cond_init(coroutine_cond_t *cond);

extern int coroutine_cond_wait(scheduler_t *sched, coroutine_cond_t *cond);

extern int coroutine_cond_signal(scheduler_t *sched, coroutine_cond_t *cond);

#endif /* __CO_CONTROL_H__ */

coroutine_create

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
coroutine_t *coroutine_create(scheduler_t *sched, void (*func)(void *), void *arg, size_t stack_size)
{
    coroutine_t *co = (coroutine_t *)malloc(sizeof(coroutine_t));
    if (NULL == co)
    {
        return NULL;
    }
	// 申请协程栈
    co->stack = (char *)malloc(stack_size);
    if (NULL == co->stack)
    {
        free(co);
        co = NULL;
        return NULL;
    }
	// 获取制作协程上下文
    if (getcontext(&co->context) < 0)
    {
        free(co->stack);
        co->stack = NULL;
        free(co);
        co = NULL;
        return NULL;
    }

    co->context.uc_stack.ss_sp = co->stack;
    co->context.uc_stack.ss_size = stack_size;
    co->context.uc_link = &sched->main_context; // 关联主调度器上下文
    co->func = func;
    co->arg = arg;
    co->state = COROUTINE_READY;
    co->stack_size = stack_size;
    co->next = NULL;

    // 加入就绪队列尾部
    if (NULL == sched->ready_queue)
    {
        sched->ready_queue = co;
    }
    else
    {
        coroutine_t *tail = sched->ready_queue;
        while (NULL != tail->next)
        {
            tail = tail->next;
        }
        tail->next = co;
    }
	// 制作协程上下文
    makecontext(&co->context, (void (*)())coroutine_entry, 1, co);
    return co;
}
// 协程入口函数
static void coroutine_entry(coroutine_t *co)
{
    co->func(co->arg);          // 执行用户函数
    co->state = COROUTINE_FINISHED; // 协程结束
}

coroutine_yield

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
// 协程让出CPU
void coroutine_yield(scheduler_t *sched)
{
    // 获取当前正在执行的协程
    coroutine_t *current = sched->current;
    if (NULL == current)
    {
        return;
    }

    // 将当前协程移到就绪队列尾部
    if (NULL != sched->ready_queue)
    {
        coroutine_t *tail = sched->ready_queue;
        while (NULL != tail->next)
        {
            tail = tail->next;
        }
        tail->next = current;
    }
    else
    {
        sched->ready_queue = current;
    }
    current->next = NULL;
    // 协程状态置为挂起状态
    current->state = COROUTINE_SUSPENDED;

    // 保存当前上下文，切换回主调度器，由调度器选择下一个协程
    swapcontext(&current->context, &sched->main_context);
}

coroutine_cond_init

1
2
3
4
5
6
7
8
9
void coroutine_cond_init(coroutine_cond_t *cond)
{
    if (NULL == cond)
    {
        return;
    }
    cond->wait_queue = NULL;
    cond->state = COROUTINE_NO; // 初始化为NO
}

coroutine_cond_wait

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
int coroutine_cond_wait(scheduler_t *sched, coroutine_cond_t *cond)
{
    coroutine_t *co = sched->current;
    if (NULL == co || NULL == cond || NULL == sched)
    {
        return -1; // 参数错误
    }
    // 条件变量状态为OK, 说明并未先执行本协程, 条件已经满足, 直接返回
    if (cond->state == COROUTINE_OK)
    {
        return 0;
    }

    // 将当前协程加入到条件变量的等待列表
    if (NULL == cond->wait_queue)
    {
        cond->wait_queue = co; // 第一个等待的协程
    }
    else
    {
        coroutine_t *tail = cond->wait_queue;
        while (NULL != tail->next)
        {
            tail = tail->next;
        }
        tail->next = co; // 加入到等待列表尾部
    }
    co->next = NULL; // 确保next指针为NULL
    co->state = COROUTINE_WAITING; // 等待状态
	// 保存当前协程上下文，返回主调度器
    swapcontext(&co->context, &sched->main_context);
    /*
     * 当协程被唤醒后，会从这里继续执行。
     * 协程从sched->ready_queue中移除, 加入了cond->wait_queue中,
     * 只有可能被coroutine_cond_signal唤醒, 且条件已经满足.
     */
    cond->state = COROUTINE_NO; // 设置条件变量状态为NO, 表示状态已经被消费
    return 0;
}

coroutine_cond_signal

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
int coroutine_cond_signal(scheduler_t *sched, coroutine_cond_t *cond)
{
    coroutine_t *co = sched->current; // 当前协程
    if (NULL == co || NULL == cond || NULL == sched)
    {
        return -1;
    }

    while (NULL == cond->wait_queue)
    {
        // 这里一般来说只会进来一次，而且这种情况不应该出现。
        // 这里属于先调用了signal，出现这种情况只可能是调度出现了问题。
        cond->state = COROUTINE_NO; // 没有等待的协程, 设置为而NO
        co->state = COROUTINE_SIGNALER; // 当前协程是信号发送者, 便于后续调度器处理
        swapcontext(&co->context, &sched->main_context); // 保存上下文，切回主调度器
    }

    cond->state = COROUTINE_OK; // 设置条件变量状态为OK, 表示条件已经满足

    coroutine_t *waiting_co = cond->wait_queue; // 取出第一个等待的协程
    cond->wait_queue = waiting_co->next; // 移除等待列表中的第一个协程

    // 将waiting_co从等待列表中移除, 加入到就绪队列头部
    waiting_co->next = sched->ready_queue;
    sched->ready_queue = waiting_co;
    waiting_co->state = COROUTINE_READY; // 设置状态为就绪

    co->state = COROUTINE_SIGNALER; // 当前协程是信号发送者, 便于后续调度器处理
    // 切换回主调度器。
    swapcontext(&co->context, &sched->main_context);

    return 0;
}

示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
#include "coroutine.h"
#include <stdio.h>

struct arg
{
    int num;
    scheduler_t *sched;
    coroutine_cond_t *cond;
};

void producer(void *arg)
{
    struct arg *p = (struct arg *)arg;
    scheduler_t *sched = p->sched;
    for (int i = 0; i < 3; i++)
    {
        printf("Producing %d %d\n", i, ++p->num);
        coroutine_cond_wait(sched, p->cond); // 等待条件变量
    }
}

void consumer(void *arg)
{
    struct arg *p = (struct arg *)arg;
    scheduler_t *sched = p->sched;
    for (int i = 0; i < 3; i++)
    {
        printf("Consuming %d %d\n", i, --p->num);
        coroutine_cond_signal(sched, p->cond); // 通知生产者
    }
}


void other(void *arg)
{
    struct arg *p = (struct arg *)arg;
    scheduler_t *sched = p->sched;
    for (int i = 0; i < 3; i++)
    {
        printf("other     %d\n", i);
        coroutine_yield(sched); // 切换到其他协程
    }
}

int main()
{
    struct arg arg;
    scheduler_t *sched = coroutine_scheduler_create();
    arg.sched = sched;
    arg.num = 10;
    coroutine_cond_t cond;
    coroutine_cond_init(&cond); // 初始化条件变量
    arg.cond = &cond; // 传递条件变量给协程

    coroutine_create(sched, producer, &arg, 1 << 20); // 1MB栈
    coroutine_create(sched, consumer, &arg, 1 << 20);
    coroutine_create(sched, other, &arg, 1 << 20);

    coroutine_scheduler_run(sched);
    coroutine_scheduler_destroy(sched);
    return 0;
}

输出：

1
2
3
4
5
6
7
8
9
Producing 0 11
Consuming 0 10
Producing 1 11
other     0
Consuming 1 10
Producing 2 11
other     1
Consuming 2 10
other     2
  • Title: LibCoroutine开发手记
  • Author: 韩乔落
  • Created at : 2025-04-02 16:56:40
  • Updated at : 2025-04-03 10:33:50
  • Link: https://jelasin.github.io/2025/04/02/LibCoroutine开发手记/
  • License: This work is licensed under CC BY-NC-SA 4.0.
Comments
On this page
LibCoroutine开发手记
  1. 简介
  2. 整体架构
  3. 数据结构
    1. co_types.h
  4. 调度器实现
    1. co_scehduler.h
    2. coroutine_scheduler_create
    3. coroutine_scheduler_destroy
    4. coroutine_scheduler_run
  5. 协程控制实现
    1. co_control.h
    2. coroutine_create
    3. coroutine_yield
    4. coroutine_cond_init
    5. coroutine_cond_wait
    6. coroutine_cond_signal
  6. 示例
